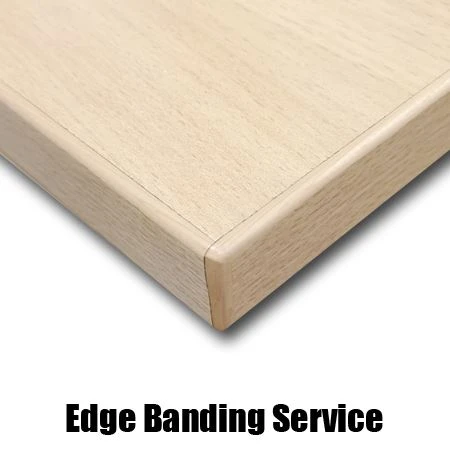

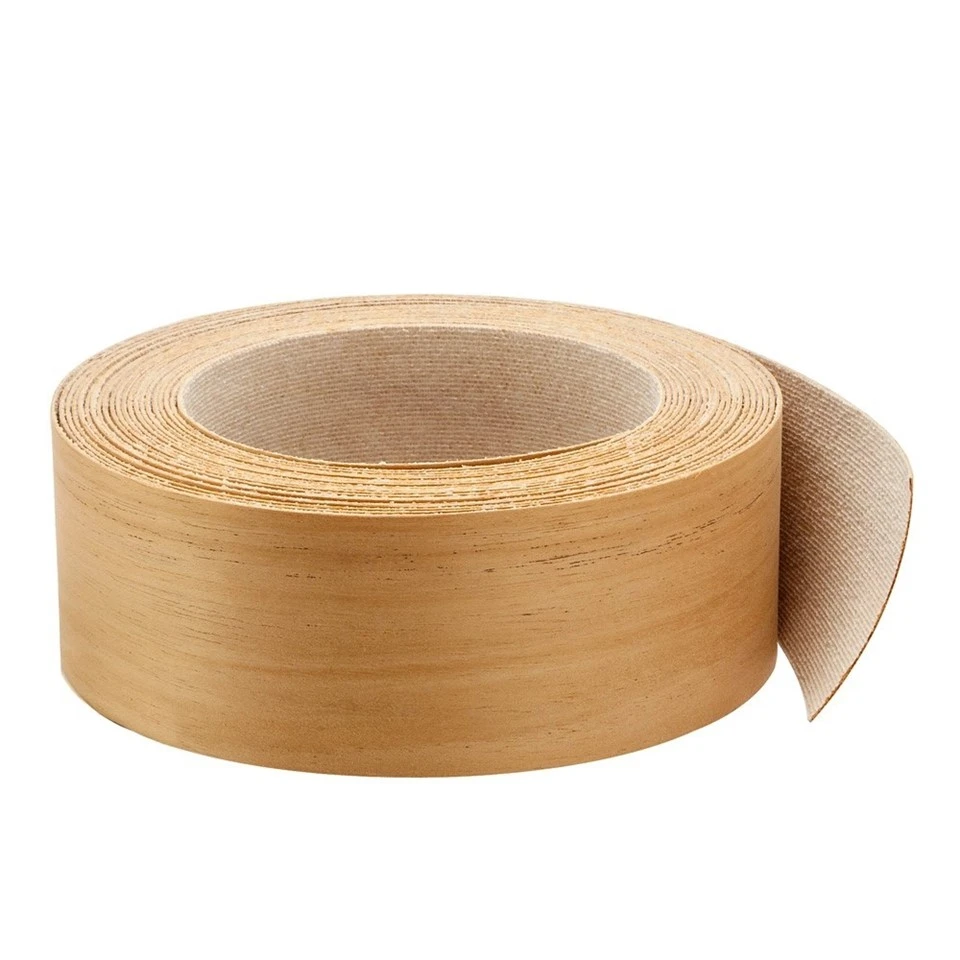

Custom Width Thickness Edge Banding

**Precision Width Customization Based on Board Thickness:** Edge banding width can be precisely set to match the actual board thickness, covering standard sizes such as 16mm, 18mm, 20mm, 25mm, 30mm, 35mm, 40mm, and 45mm, while also accommodating non-standard thicknesses and irregular edge profiles. With a width tolerance controlled within ±0.1mm, the banding fully covers the cut edge, eliminating the need for on-site trimming and saving both labor and materials.

**Flexible Thickness Selection Based on Functional Needs:** Thin types (0.4–0.6mm) are ideal for cabinet interiors, curved edges, and irregular profiles, offering excellent flexibility and ease of application; medium-thickness types (0.8–1.0mm) offer a cost-effective solution for visible surfaces like cabinet doors and drawer fronts; and thick types (1.5–3.0mm) are suitable for tabletops, countertops, and door faces where edge strength and a pronounced, dimensional look are required-resulting in a full, well-defined radius and a solid tactile feel after chamfering.

**Reduced On-Site Trimming and Material Waste:** Standard-width edge banding typically exceeds the board thickness by 2–4mm, requiring a trimming process to remove the excess. Custom-width banding is manufactured to match the exact board thickness, requiring minimal or no trimming; this reduces material waste (saving 5%–10%) and lowers costs associated with trimming tool wear and labor hours.

**Enhanced Edge Smoothness:** With thickness tolerances controlled within ±0.02mm, the banding sits flush with the board surface, ensuring a seamless feel to the touch. For products demanding high edge precision-such as high-gloss or "skin-touch" (matte/soft-touch) panels-custom-thickness banding minimizes surface irregularities or light reflection inconsistencies caused by uneven thickness.
